Don’t see your VTX? Let us know!

Don't worry, the TBS RaceTracker works with EVERY video transmitter, even if we are missing it here.

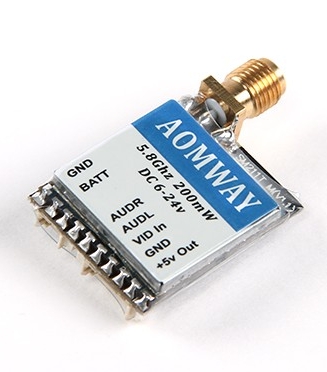

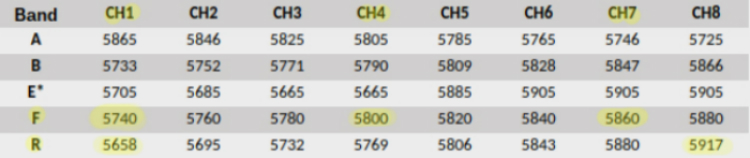

Aomway Micro 200mW 32ch 5.8GHz
 The Aowmay is transmitting a full range of 32 channels and only weighs 6g.

Detailed spec sheet


Ares Z-Line 5.8GHz 200mW

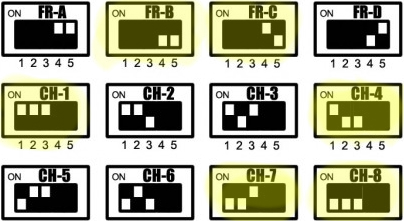

Dip switches 1-3 control your channel, while dip switches 4-5 control your band. Switch 6 is unused. Simply match and go!

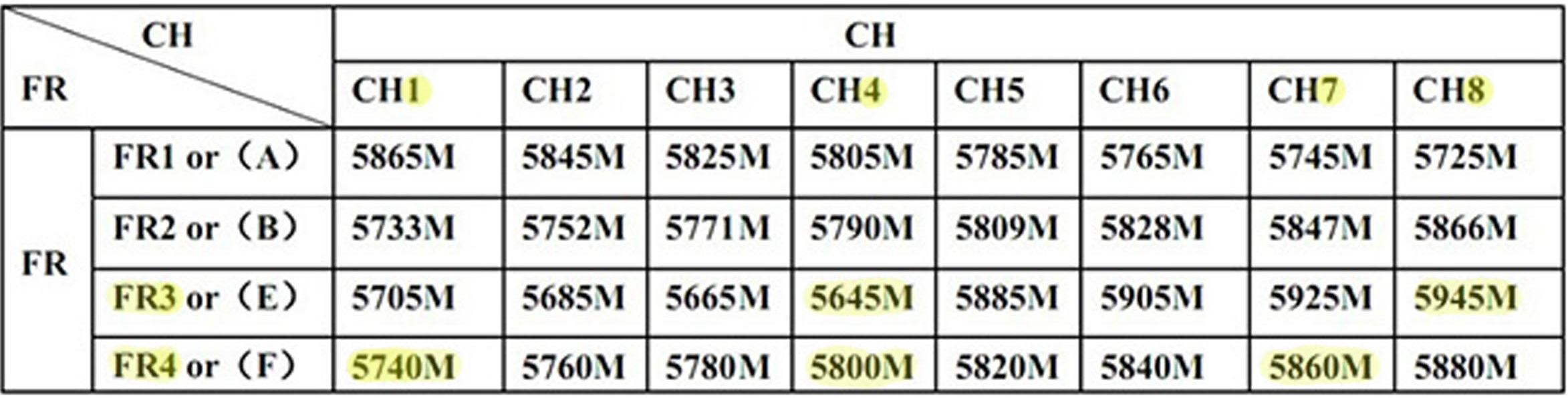

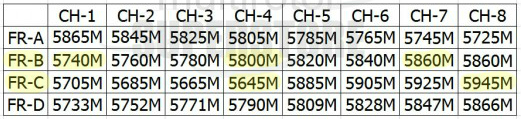

Bosom TS 832 5.8GHz 600mW This VTX features 2 convenient buttons for managing your frequencies. First digit displays your current band, 1-4. Second digit displays your current channel, 1-8. Simply push the buttons until the desired frequency is displayed.

Avoid using high powered video transmitters for group flying as they may stomp on your fellow pilots’ feed!

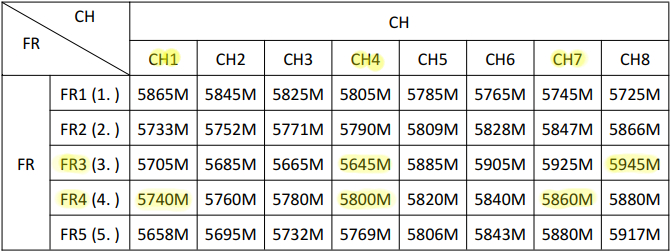

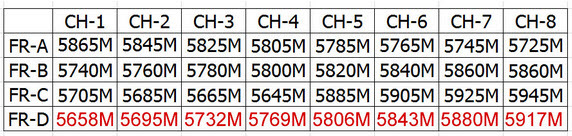

Boscam RC832 32CH VRX Click the CH button to switch channels & FR button to switch bands (Frequency).


Boscam TS5823/8 5.8GHz 200/600mW Dip switches 1-3 control your channel, while dip switches 4-5 control your band. Switch 6 is unused. Simply match and go!

Avoid using high powered video transmitters for group flying as they may stomp on your fellow pilots’ feed!


Dragonrider DRAK 5.8GHz 25-600mW Quick push to switch channels, push & hold to switch bands.

Avoid using high powered video transmitters for group flying as they may stomp on your fellow pilots’ feed!

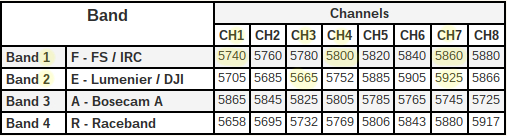

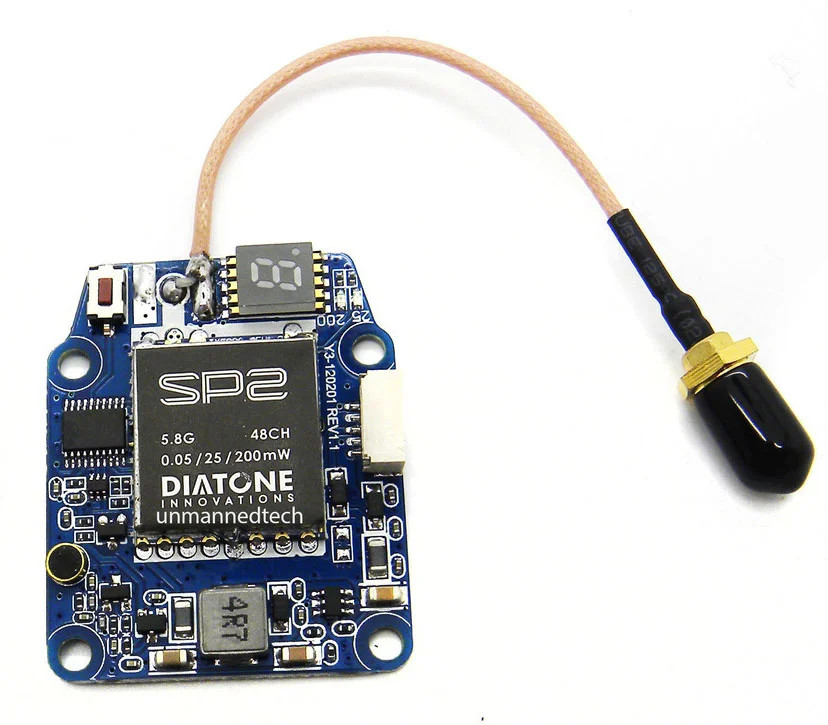

Diatone stackable SP2
How to operate: One button does it all

- Short Press: Switches Frequency
- Press & Hold for 2 Sec: Switches Frequency Band
- Press & Hold for 10 Sec: Switches Power
- Blue Light: 25mW
- Red Light: 200mW
- Light off: 0.05mW

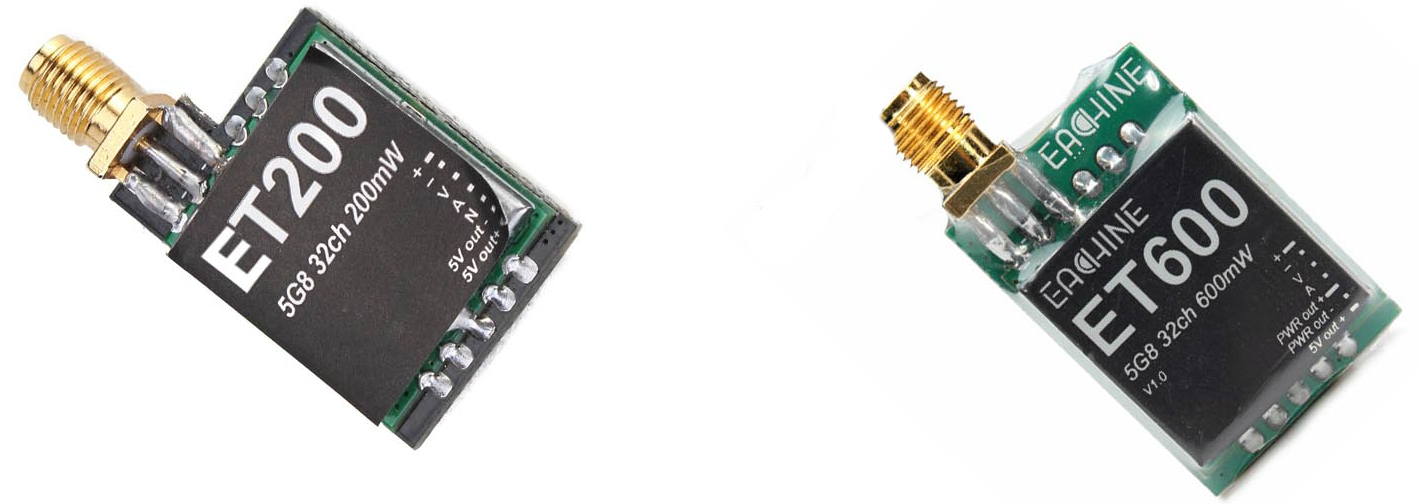

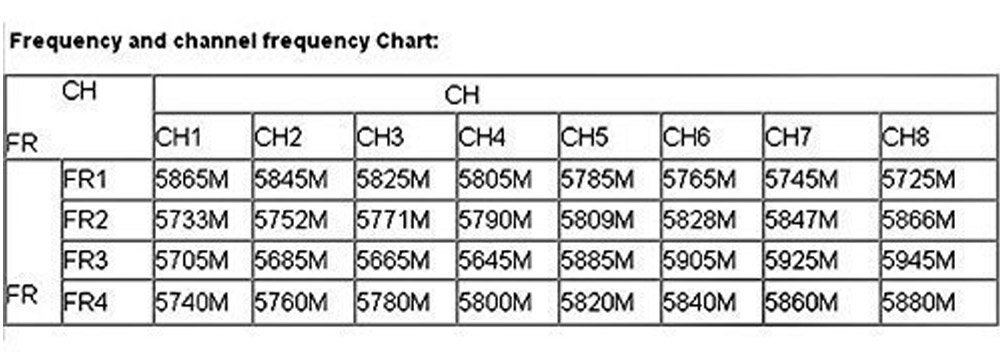

Eachine ET200/600 5.8GHz 200/600mW This VTX features a simple 1 button interface. Quick push of the button switches channels, while pushing and holding switches bands.

Avoid using high powered video transmitters for group flying as they may stomp on your fellow pilots’ feed!

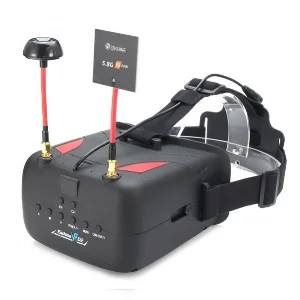

Eachine VRD2
Features:
Dual Receivers for range and signal strength,
Built in DVR/Record Function


Eachine TX526

How to Use:

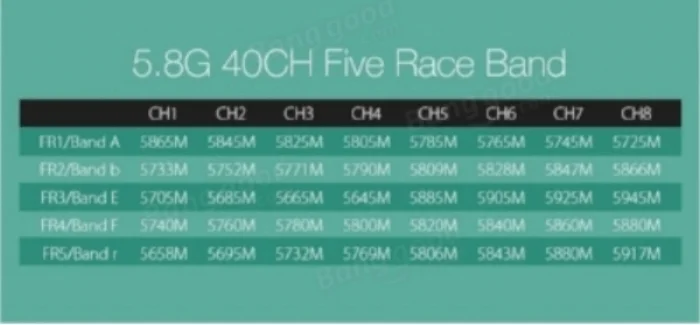

TX526 Ch.jpg

Eachine ET25R

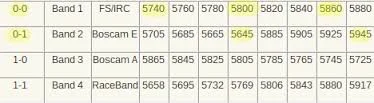

Fatshark Dominator 32CH VRX Module (Raceband) The 2 dip switches control your desired band. Use the channel switches located on top of your goggles to change channels.

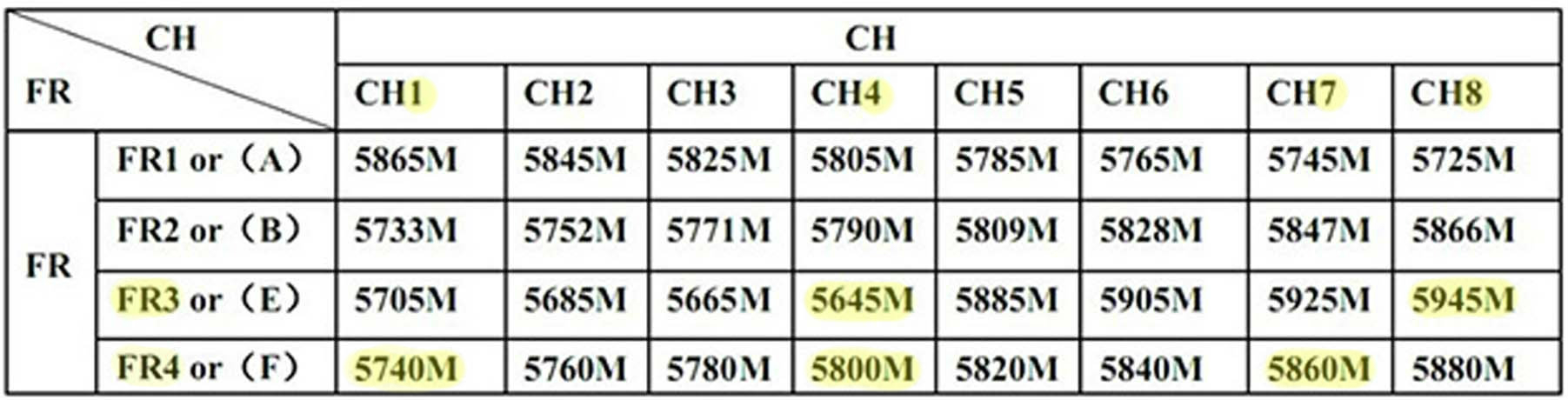

Foxeer TM200/600 5.8GHz 200/600mW Quick push to switch channels, push & hold to switch bands.

Avoid using high powered video transmitters for group flying as they may stomp on your fellow pilots’ feed!


FX799T 5.8GHz 200/600mW Quick push to switch channels, push & hold to switch bands.

Avoid using high powered video transmitters for group flying as they may stomp on your fellow pilots’ feed!


Furious STEALTH Adjustable 25-600mW VTX

Pinout of cable
1: GND (Black)
2: 2-6S (Red)
3: Video (Yellow)
4: +5V (Green)
5: GND (Blue)




Hawkeye/UBAD 5.8GHz 200/600mW Dip switches 1-3 control your channel, while dip switches 4-5 control your band. Simply match these with your desired frequency and you’re set. Avoid using high powered video transmitters for group flying as they may stomp on your fellow pilots’ feed!


Hawkeye/UBAD 5.8GHz 200mW Raceband Dip switches 1-3 control your channel, while dip switches 4-5 control your band. Simply match these with your desired frequency and you’re set.


Immersion RC 5.8GHz 600mW   This VTX features a simple 3-toggle dip switch for frequency management. Just match them to the desired frequency and you’re set.

Avoid using high powered video transmitters for group flying as they may stomp on your fellow pilots’ feed!


Immersion RC DUO 5800 32CH VRX
Click the channel button to change channels. To access frequencies outside of the Fatshark band, power on while holding both channel and band buttons down. 10 beeps confirms unlock.

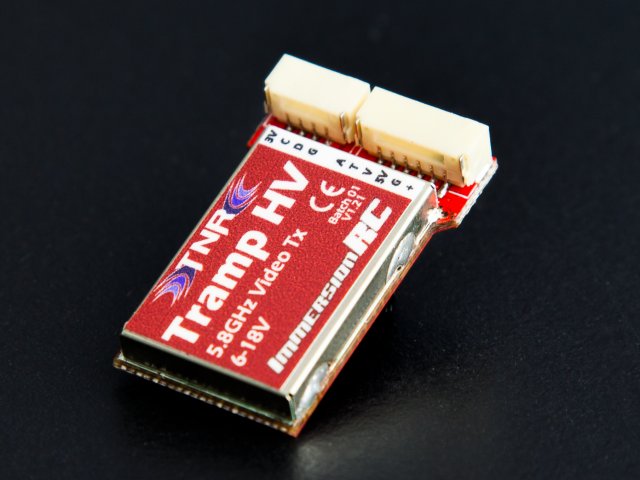

Immersion RC Tramp HV

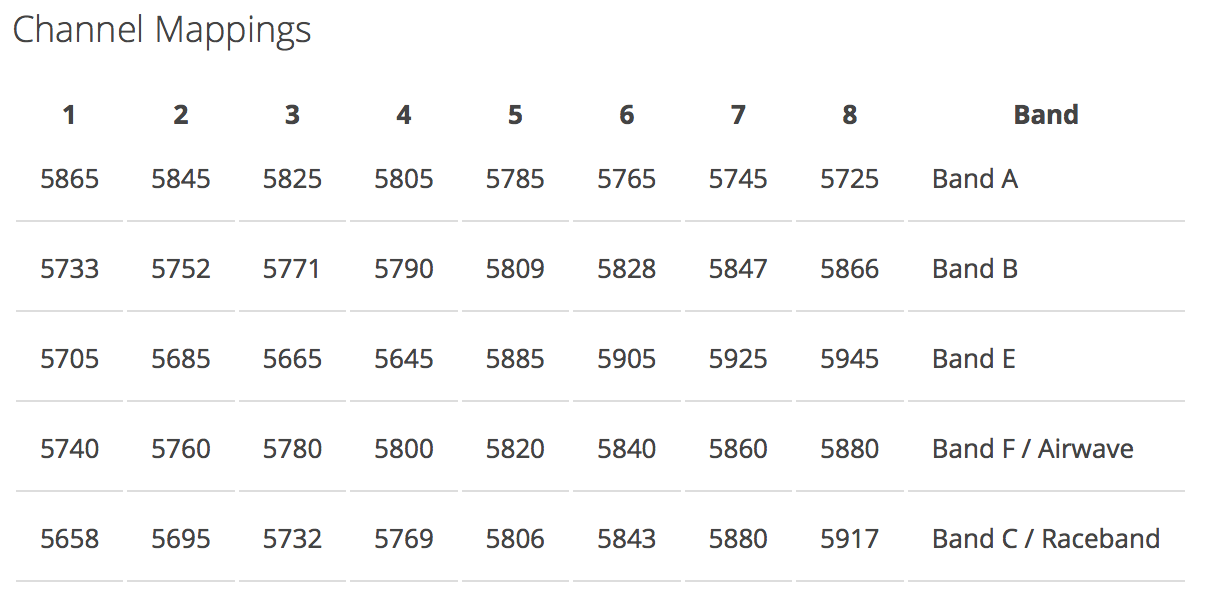

Depending upon the Tramp variant purchased, the power output level, and available transmit frequencies can vary.


LaForge 40CH Dominator RX Module
Click on the side switch to enter the menu. Click down twice and select manual mode. Up & down clicks allow you to set your desired frequency.

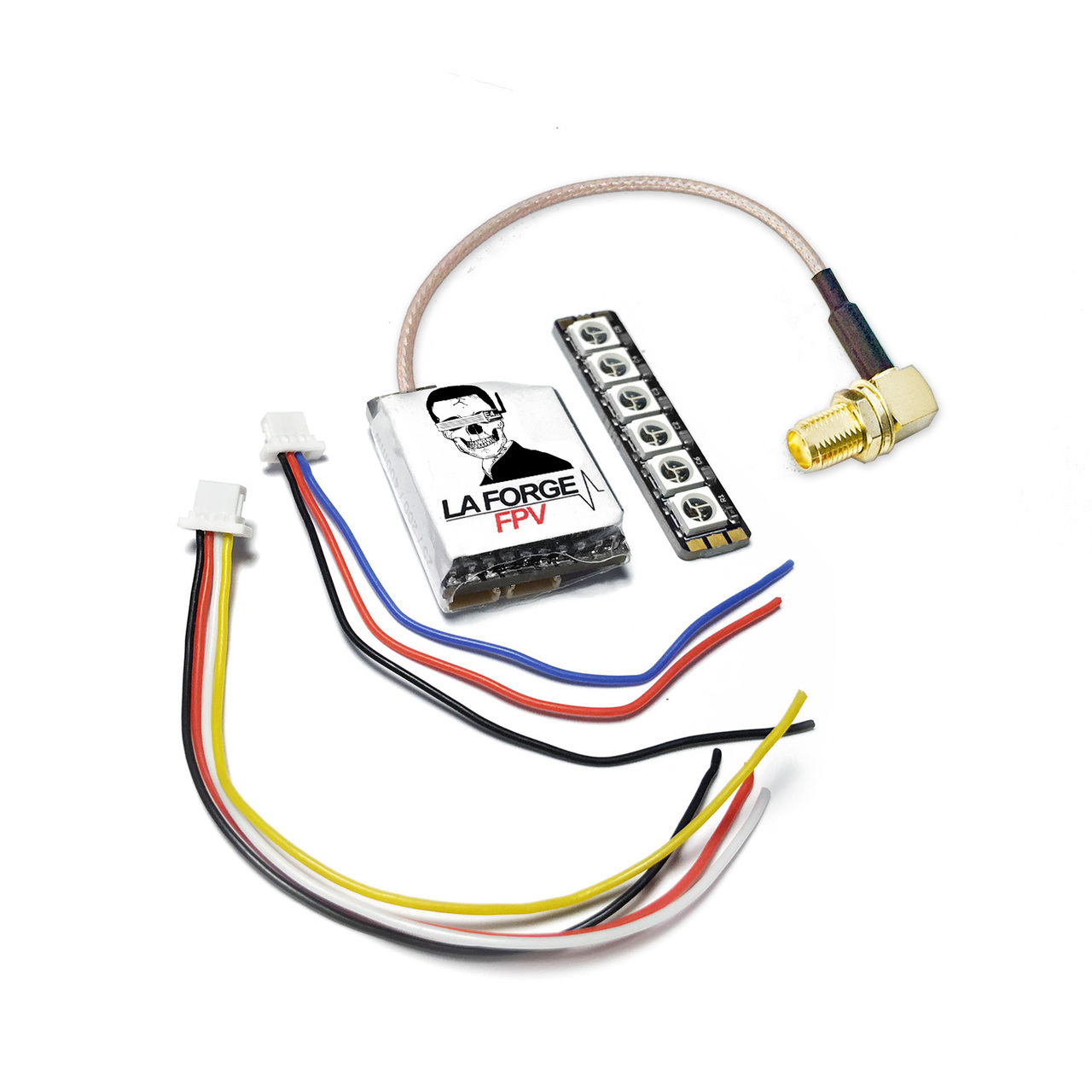

LaForge 5.8ghz 25/200/400mw Switchable Video Transmitter

The 25/200/400mw adjustable vTX module allows for the fastest channel switching in the industry.

With IR (infrared) technology you can quickly switch any setting from your Main Module or with the handheld remote.


Lumenier TX5G6R 5.8GHz 25/200/600mW Quick push to switch channels, push & hold to switch bands.


Avoid using high powered video transmitters for group flying as they may stomp on your fellow pilots’ feed!


Lumenier TX5GPro 5.8GHz 25/200/600mW Quick push to switch channels, push & hold to switch bands.

Avoid using high powered video transmitters for group flying as they may stomp on your fellow pilots’ feed!


RMRC Cricket 5.8GHz 200/600mW
Quick push to switch channels, push & hold to switch bands.

Avoid using high powered video transmitters for group flying as they may stomp on your fellow pilots’ feed!


TBS Greenhorn 5.8GHz 25mW

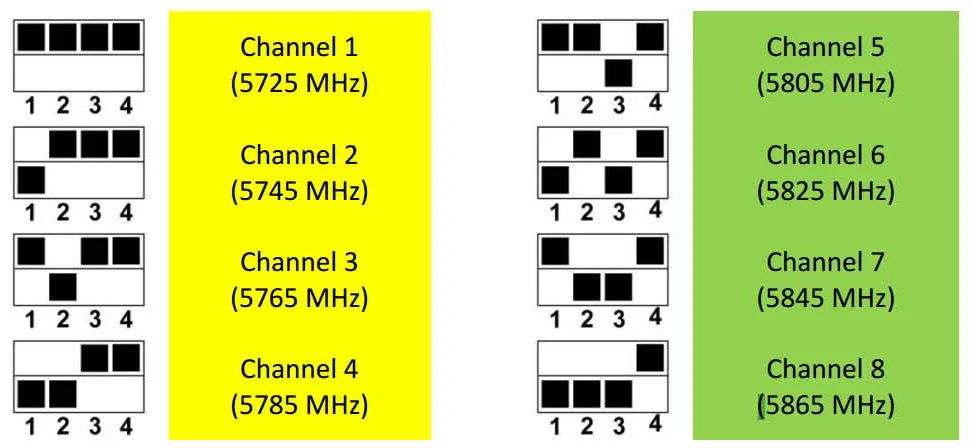

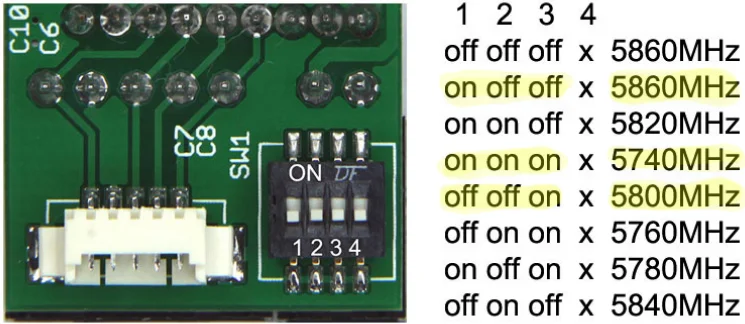

Featuring a 3-toggle dip switch similar to the ImmersionRC, tuning in to your desired frequency is as easy as matching the toggle positions with the image to the right.

25mW of power is perfect for indoor flight. We suggest 200mW for outdoor group flying.

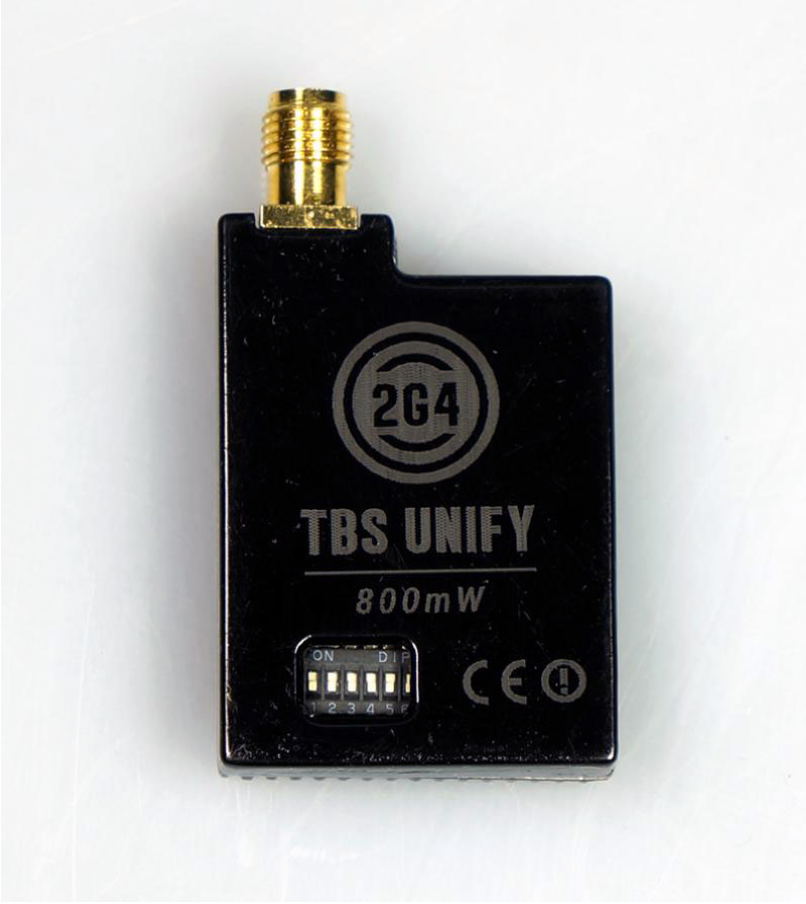

TBS UNIFY 2G4 500mW / 800mW 16ch Video Tx

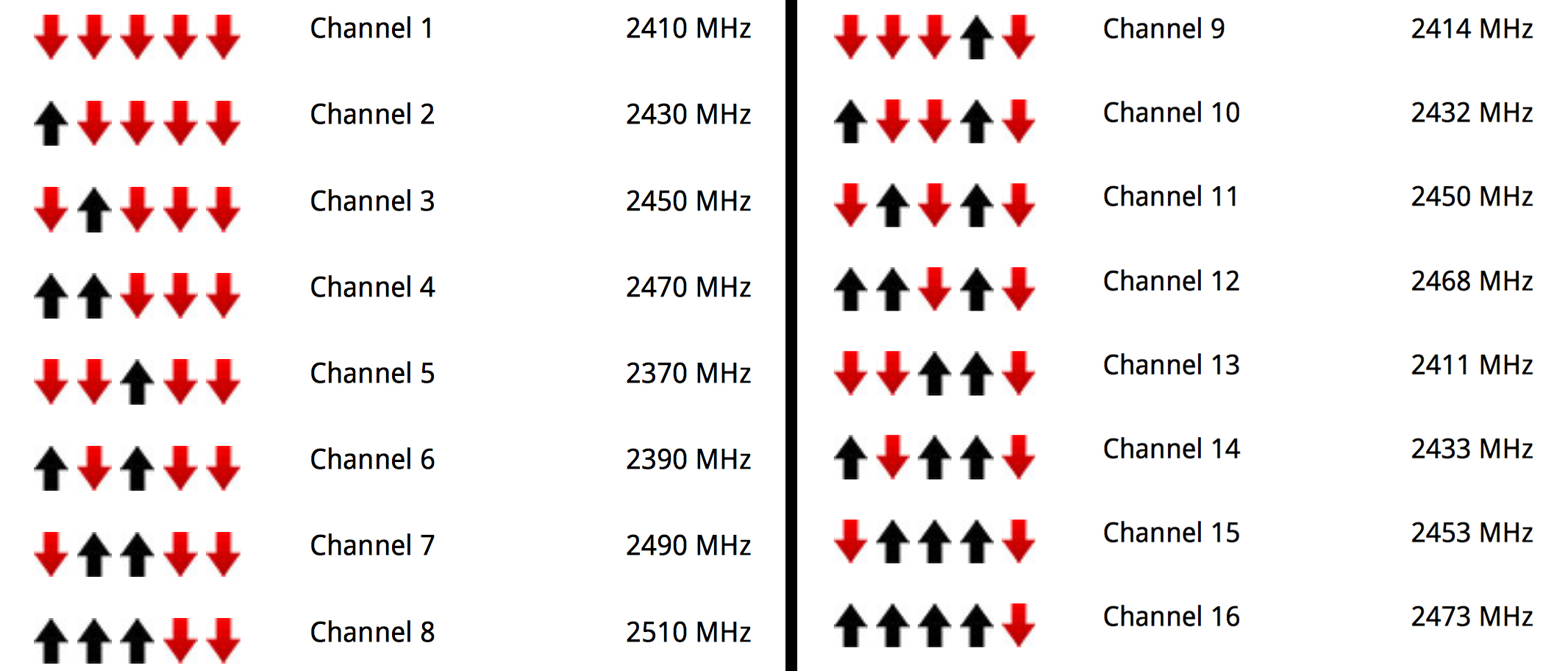

The 16 channels are made available via the first 5 pins of the dip switches located at the front of the transmitter. Dip switches are encoded in binary format, please reference to below table for the switch position to channel  mapping.


Link to manual

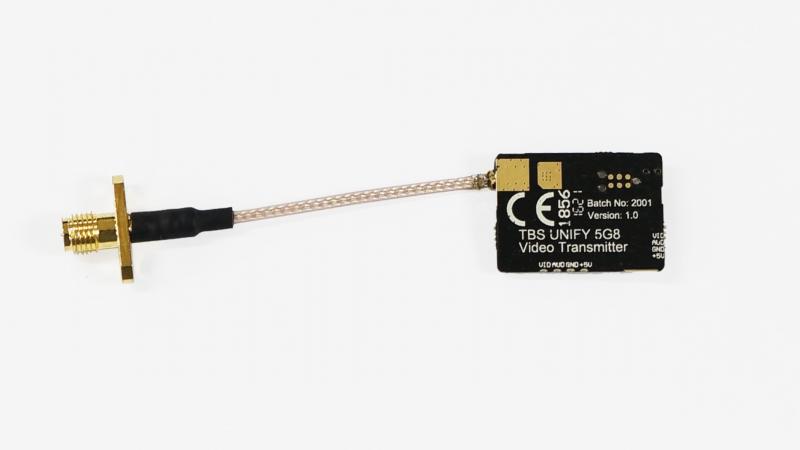

TBS UNIFY PRO 5G8 V2

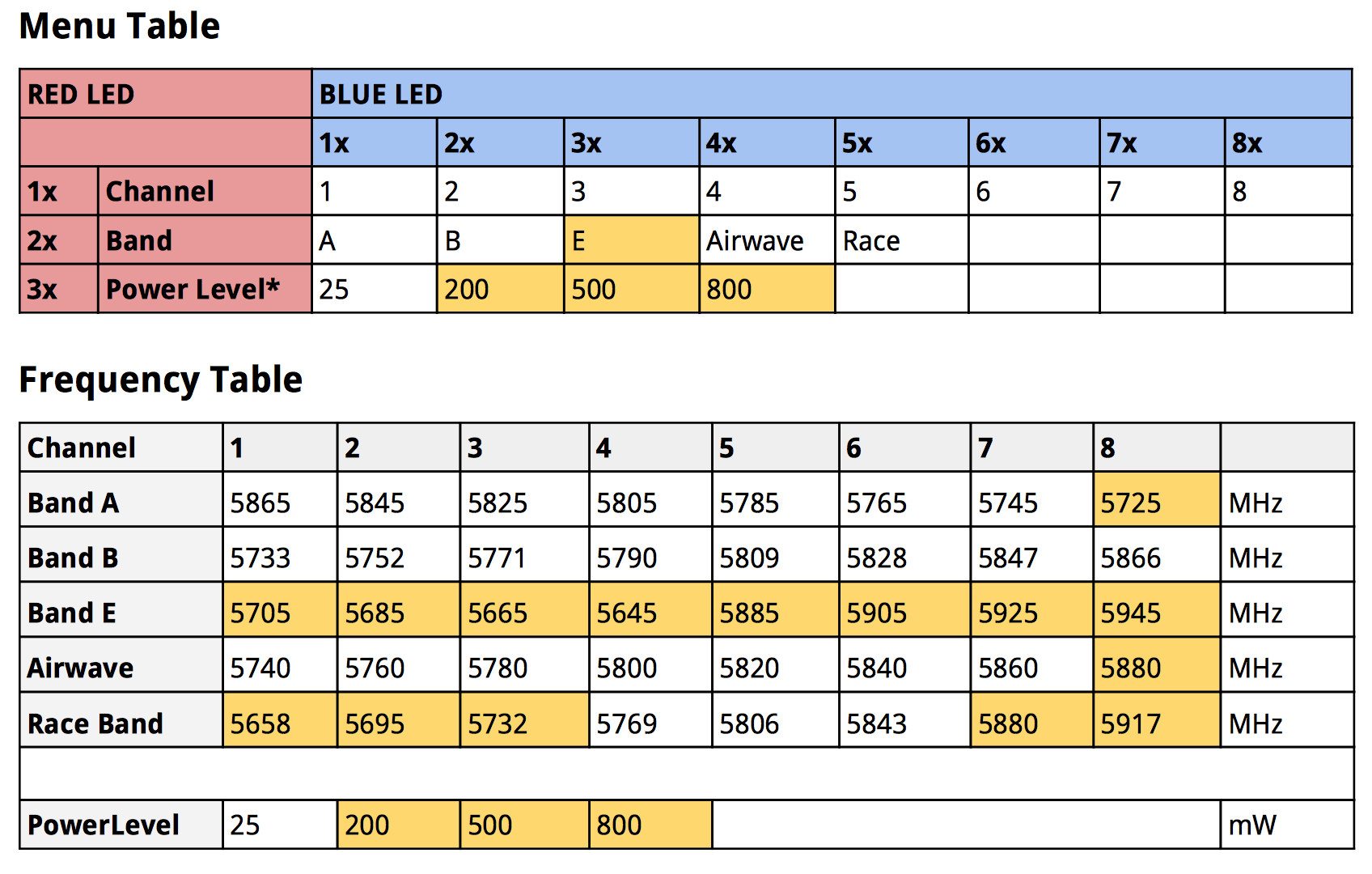

There are categories in the menu, and settings. Pressing the button for 3 seconds will toggle between categories, pressing it for a short (<1 second) time toggles between settings. To enter the menu, hold the button for 3 seconds. LED colors will signal the state of the menu, for an overview see the following table.

Link to manual

The selections in orange requires HAM license to operate legally. The video transmitter ensures that you cannot select illegal channels or power levels by accident.


TBS 40CH VRX Module
